No.	item		Unit	CPCD250
1	Machine size		mm	8700×3000×3860
2	Machine weight		Kg	34150
3	Rated load		Kg	25000
4	Load center		mm	1200
5	Max.lifting height		mm	4020
6	Mast tile angle		°	On June 12,
7	Fork size(L*W*H)		mm	2400×310×100
8	Max.grade ability		°	20
9	Max.travel speed		Km/h	24
10	Min.turning radius		mm	5900
11	engine	Model	/	D10.22T21
12		Max.torque	N.m	920
13	Rated power/speed		Kw/r.p.m	162/2200
With the improvement of the new technology, the product structure and parameters will be continuously improved ,if the sample information is not in conformity with the physical object,  pls refer to the object.

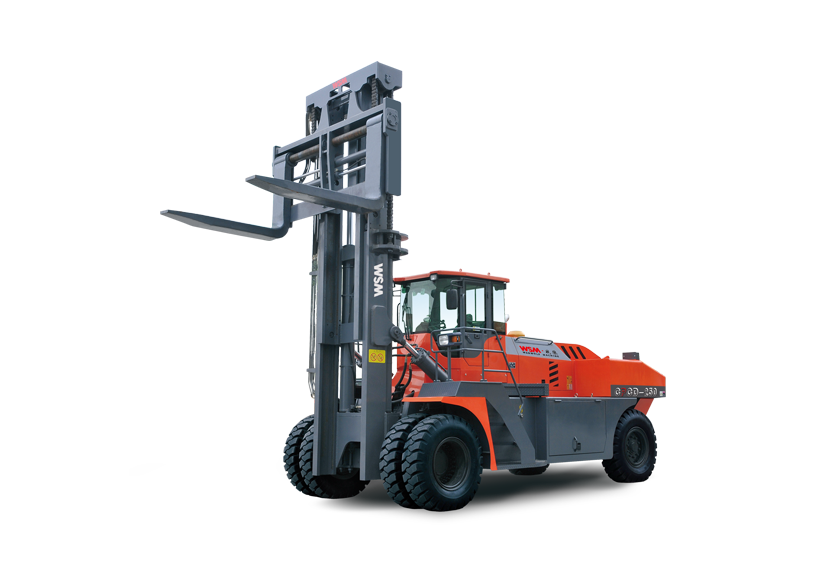

Productname：	Forklift,(CPCD250)
Product Number：
Product Introduction：

Counter balance heavy duty diesel forklift CPCD250 Product feature



1.China Steyr engine ,strong power,big torque ,low oil consumption .double air filter as standard.Counter balance heavy duty diesel forklift CPCD250

2. new type steel structure cab, luxury interior, A/C and warm air outside (optional), mechanical suspension seat, easy to adjust, comfortable ride.Counter balance heavy duty diesel forklift CPCD250

3.Pilot control: proportional pilot hydraulic system, accurate control , easy operation, control force is only 1/3 of normal, simplify the control program, reduce fatigue strength.



4.Brake system: the hydraulic parts is using the famous imported parts .the force of brake pad to be directly effect on the slide valve, make brake more smooth ,safe ,reliable.

5.welding drive axle , to ensure the stiffness and strength of the bridge, compact structure, reasonable input torque and high transmission efficiency.

6.The lifting system is use the import Italy explosion-proof valve,more safety.

7.Front & back visual system,clear vision ,more safety ,high efficiency.

 standard configuration



l Steyr Engine D10.22T21

l ZL 60gear box

l Pilot control

l WSM heavy duty drive axle

l  2 stage 4000mm mast



Counter balance heavy duty diesel forklift CPCD250 Optional

l  Cummins engine

l A/C

l  Attachments: Roll clamp,  rolling prong,tire clamp..



l Solid tire

l color as customer required

2 stage 5000mm mast

l

Counter balance heavy duty diesel forklift CPCD250 Vehicle’s terminal system (including GPS positioning, real time monitoring ,machine info)

Note:Due?to?technical?innovations,?above all are?for reference only,all information subject to finnal confirmation!
